Current location:Plywood Machinery > Products
plywood machinery of BSY Group
Products

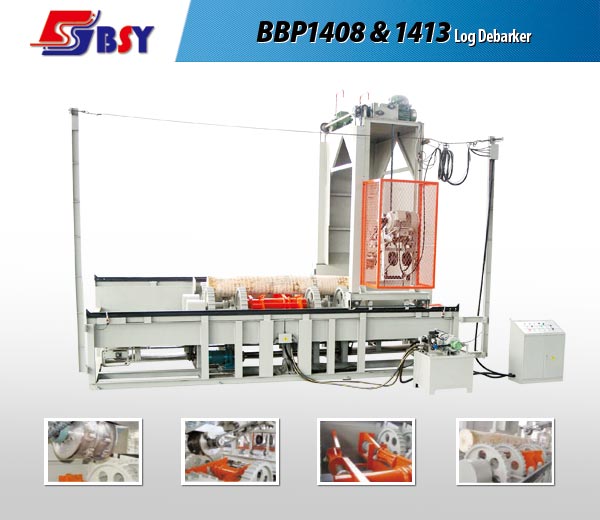

BBP1413 Rosser Head Log Debarker
BBP1413 Rosser Head Log Debarker
The log debarker apparatus is main parts of the log handling section of plywood production line, which uses a pair of shaft with cleated wheel to fixed the log, then uses the grind head to bark log skin, then send the barked log to log centering apparatus.

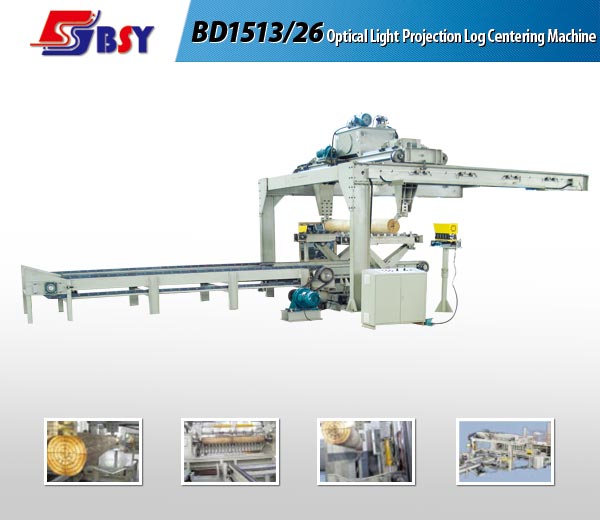

BD1513/26 Optical Light Projection Log Charger
BD1513/26 Optical Light Projection Log Charger
A veneer lathe charger system utilizing automated equipment for scanning and positioning a log to obtain optimum production of veneer therefrom. For this apparatus, it uses optical light projection to scaning the center of the log, then uses mechanical arm to hand the log to veneer peeling lathe.

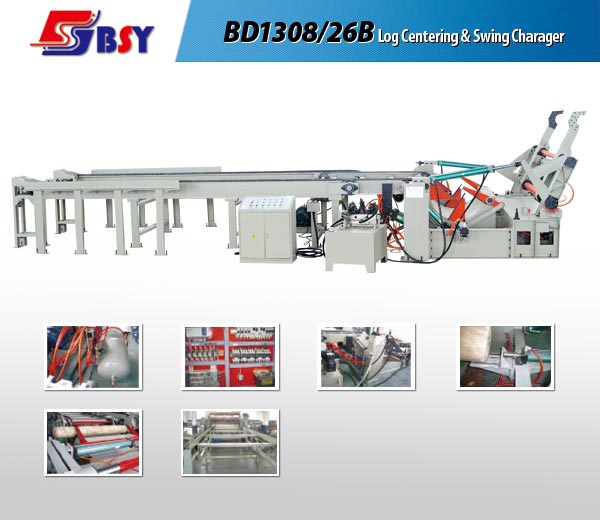

BD1308/26B Mechanical Geomatric Log Charger
BD1308/26B Mechanical Geomatric Log Charger
This apparatus install ahead of the veneer peeling lathe, it can accurately detects the center position of log and quickly charges the log to the veneer lathe. and can save many labours through using this machine.

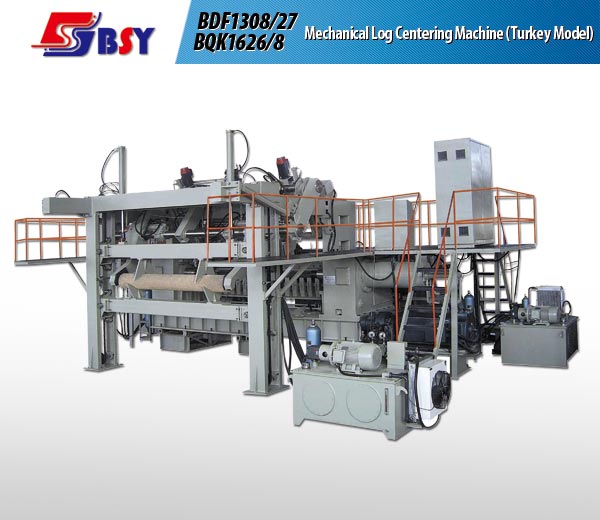

BDF1308/27 & BQK 1626/8 Mechanical Log Charger (Turkey Model)
BDF1308/27 & BQK 1626/8 Mechanical Log Charger (Turkey Model)
This model was designed for our Turkish Customer, it combinates Log charger and hydraulic daul-spindle peeling lathe. The whole machine uses Japanese Numerical Control system, so it has high efficiency.

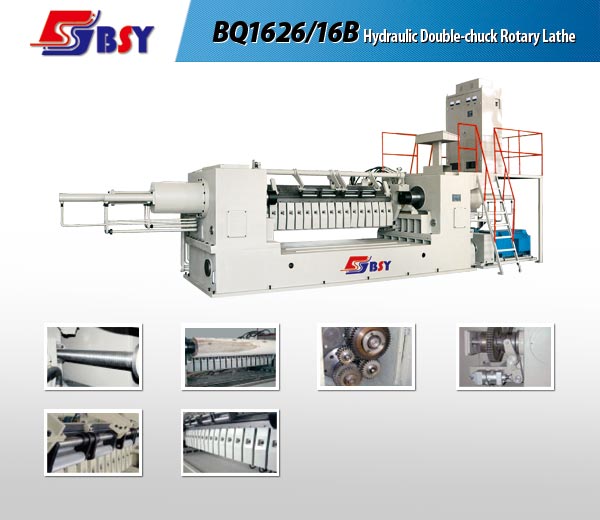

BQ16 Series Hydraulic double-chuck veneer peeling lathe
BQ16 Series Hydraulic double-chuck veneer peeling lathe
This veneer peeling lathe apparatus is used to peel the log without skin into veneer. This type uses hydraulic knife assembling system, automatic tool carrage feeding system and telescope chuck. also with the backup roller to provide the log banding.

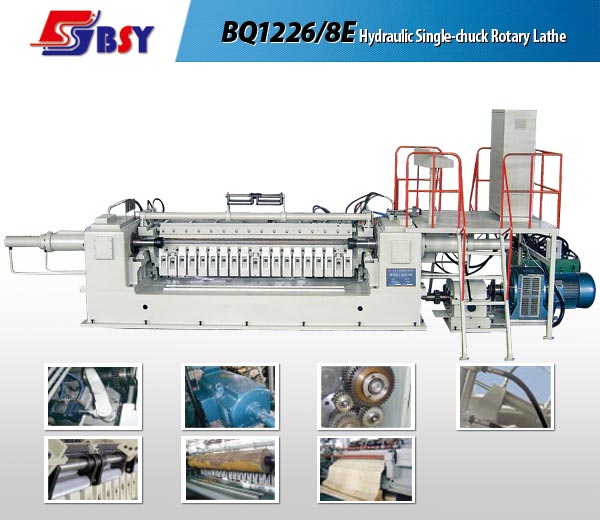

BQ1226 Series Hydraulic single-chuck veneer lathe
BQ1226 Series Hydraulic single-chuck veneer lathe
This type veneer lathe apparatus uses the modern European and Japanese technology with high efficiency. Using automatic hydraulic kinfe assebling and tool carriage feeding system. For avoiding log banding the backup roller has been set up on tool carriage.

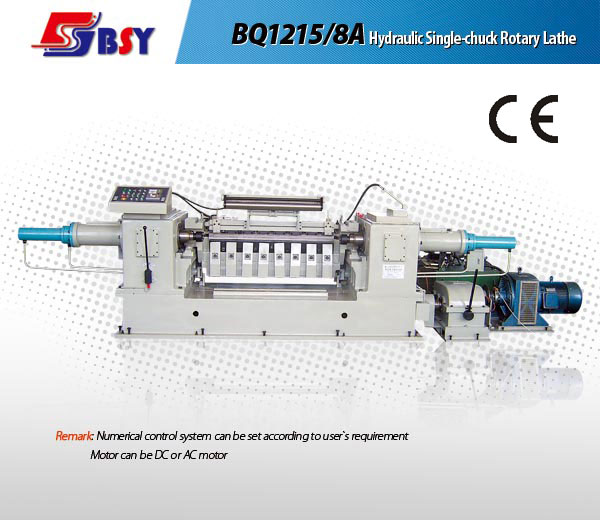

 BQ1215/8A Hydraulic single-chuck veneer peeling lathe
BQ1215/8A Hydraulic single-chuck veneer peeling lathe
This type veneer lathe apparatus uses the modern European and Japanese technology with high efficiency. Using automatic hydraulic kinfe assebling and tool carriage feeding system. For avoiding log banding the backup roller has been set up on tool carriage.

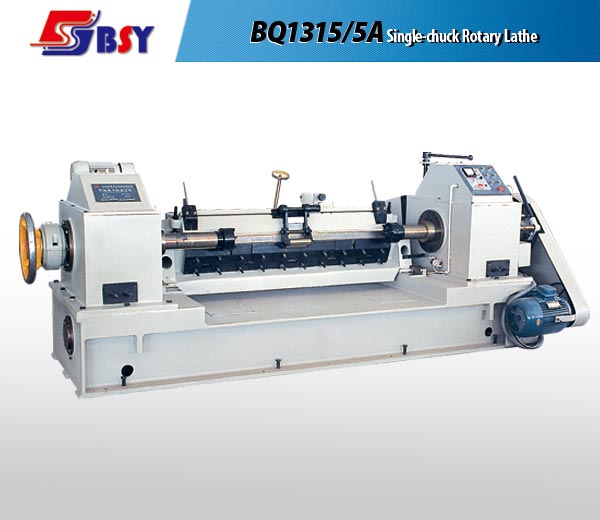

Mechanical spindle veneer lathe
Mechanical spindle veneer lathe
This veneer peeling lathe can be used to peel core veneer. The control system is PLC. It uses twist grip to control the working length, and uses chain transimission to control the spindle speed. The knife assembling system also uses manual method.

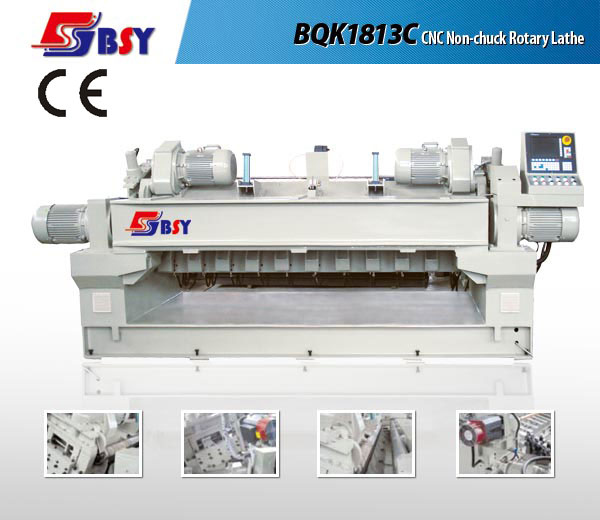

BQK series NC spindle less veneer lathe
BQK series NC spindle less veneer lathe
This veneer peeling lathe is used to peel the small diameter log into core veneer, through using this, we can save the core log which is left by spindle veneer peeling lathe. It used CNC system to control the main parts work, uses servo motor to control the tool carriage ahead and back. The knife assembling system is hydraulic.The transmission is gearbox driving screw.
